Mobile-Mini Nebulizing Diffuser Instruction Manual
![lady and her mobile mini](https://organicaromas.com/wp-content/uploads/2024/01/Mobile-Mini-TOP-Header.jpg)
![mobile mini components](https://organicaromas.com/wp-content/uploads/2024/01/1-Parts.jpg)
Diffuser has Multiple Volume Control Settings:
- Press 1x: ON/High Volume
- Press 2x: Medium Volume
- Press 3x: Low Volume
- Press 4x: Extra Low Volume
- Press 4x: Extra Low Volume
![usb charging cable](https://organicaromas.com/wp-content/uploads/2024/01/2-USB-Cable.jpg)
![](https://organicaromas.com/wp-content/uploads/2024/01/3-Tubes.jpg)

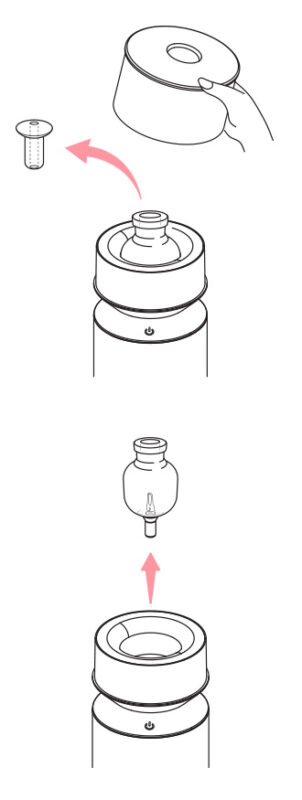

1. When the power is off, open the top cover lid, remove the glass cap and take the glass reservoir out of the machine.
![how to use your mobile mini nebulizing diffuser](https://organicaromas.com/wp-content/uploads/2024/01/1-How-to-302x800.jpg)

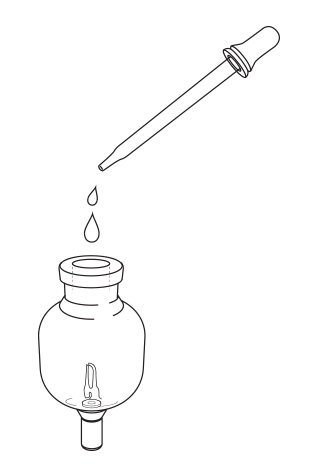

2. While the glass reservoir is OUTSIDE of the machine add 20-25 drops pure essential oil to the reservoir.
![how to put essential oil in your mobile mini](https://organicaromas.com/wp-content/uploads/2024/01/2-How-to.jpg)
![do not overfill your glass reservoir](https://organicaromas.com/wp-content/uploads/2024/01/3-how-to-1.jpg)
Do not overfill: keep the oil level
at least 1/4 inch (0.6 cm) below the
top of the two small glass tubes at
the bottom of the reservoir.

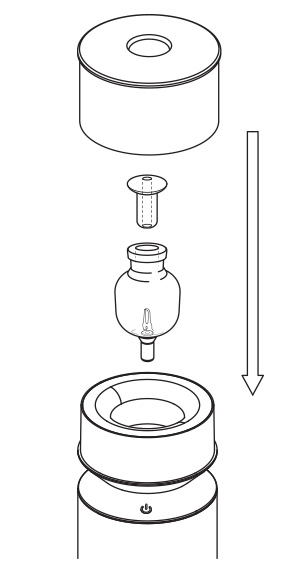

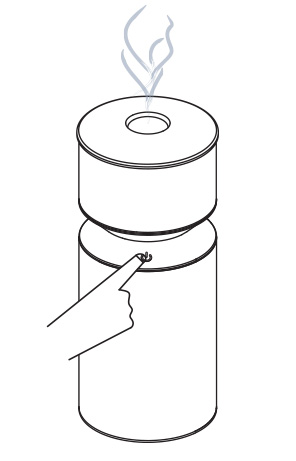

3. Replace the glass cap, glass reservoir, close the top cover lid, press the power button and turn on the nebulizer.
![put the glass reservoir back in the base](https://organicaromas.com/wp-content/uploads/2024/01/4-how-to.jpg)
![cap on and press on](https://organicaromas.com/wp-content/uploads/2024/01/5-how-to.jpg)
- When the diffuser is operating and being charged at the same time, the guide light will shine red.
- When the diffuser is charging only, the guide light will blink red.
- This diffuser is programed to diffuse ON for 2 minutes and turn OFF for 1 minute in a cycle for a period of two hours. After working for two hours the diffuser will automatically shut down.
- The diffuser is equipped with charging protection so it will automatically stop charging when the battery is fully charged.
- When the battery is low, the guide light will flash red indicating it needs to be recharged soon.
- This machine contains lithium batteries. Treat with care, never leave unattended. Never expose to high heat.
Product failure or other damage caused by failure to comply with the following precautions will void the free warranty. Please pay special attention.
- Please do not let essential oil or any other liquid drip outside of the
glass reservoir and into the pump housing. This can quickly ruin
the internal pump. - Turn the diffuser off before adding any new oil.
- This machine is only capable of diffusing pure essential oil, do not use
fragrance oils or anything synthetic. Other oils may cause a blockage or
could damage the machine components. - Please do not use thick essential oils such as those extracted from tree
resin like benzoin, myrrh, frankincense, patchouli, vetiver, clove and
sandalwood. These oils can dry inside and clog the micro-tubes. - Do not use essential oils that contain carrier oils, such as coconut oil,
jojoba oil, almond oil and grape seed oil. Also please do not use water. - Please add the appropriate amount of essential oil depending on the
frequency of use. Do not add too much oil at one time as contact with
air will cause the oil to oxidize, become stiff and clog the nozzle. - Blockage of the micro-tubes may cause the diffuser to malfunction.
Make sure you regularly clean the diffuser glass according to the
method described in the instruction manual. - In order to avoid damage to the machine do not expose it to direct
sunlight, place it close to an air conditioning vent, or near the outlet of
heating equipment such as a radiator. - In order to avoid electromagnetic interference with other electronic
instruments please avoid placing the diffuser close to electronics such
as a radio, an automobile electronic key interface or other sensitive
computer equipment. - Please do not use the diffuser if there is no essential oil in
the glass reservoir. - If you do not plan to use the machine for a long time, please pour out all
remaining oil in the glass reservoir and perform a thorough cleaning.
After the glass reservoir is clean and completely dry return it to its
original position for storage. - The strength of the mist and performance of the diffuser can and will
differ depending on the kind of essential oil used, varying humidity,
barometric pressure, the ambient temperature and in locations with
strong ventilation, open windows/doors and/or vaulted ceilings. It is
normal to see some discrepancy in performance when the unit is
used in different environments. - Do not move or unnecessarily shake the diffuser during operation
and do not remove the glass reservoir while the machine is operating.
Regular Cleaning
After every 5-6 uses (approximately once a week) or whenever you wish to change a new essential oil scent, please thoroughly clean the product in the following manner:
1. Switch off the machine, unplug the power cord and remove the top cover lid.

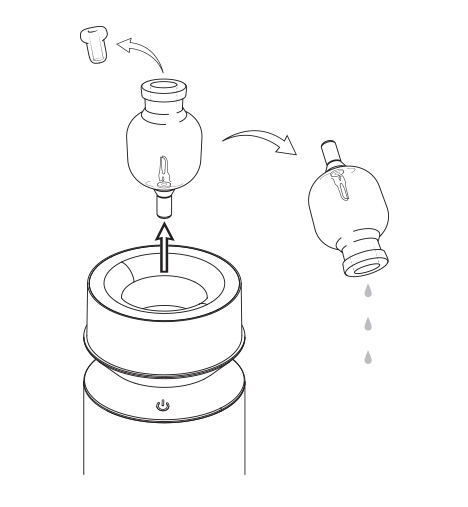

2. Remove the glass reservoir from the diffuser and pour out
any remaining, unused oil.
![regular clean for your mobile mini](https://organicaromas.com/wp-content/uploads/2024/01/Maintenance-1-1.jpg)

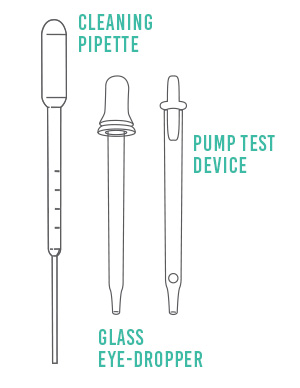

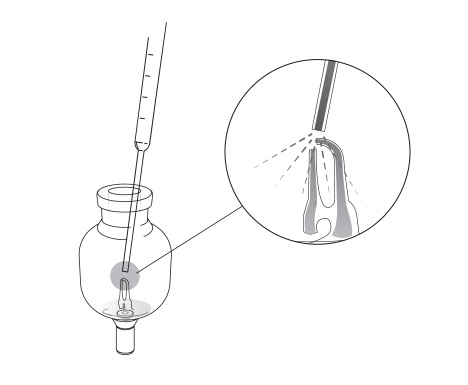

3. Use the supplied dropper pipette to squirt 1-3 milliliters of high percentage
isopropyl alcohol into the glass reservoir.
![use the pipette to spray the micro-tubes](https://organicaromas.com/wp-content/uploads/2024/01/Maintenance-2.jpg)
4. Gently shake and swirl the alcohol in the glass reservoir for approximately 1 to 2 minutes in order to clean out all of the remaining residual essential oil film.
![swirl the alcohol in your glass reservoir](https://organicaromas.com/wp-content/uploads/2024/01/Maintenance-3-1.jpg)
Deep Cleaning
It is recommended that you clean the glass reservoir once a month in order to ensure product quality and performance.
1. Remove the glass reservoir from the diffuser body.
2. Prepare a container, boiling hot water and a small amount of dish
soap then put the glass reservoir and glass cap in the hot water.
![soak your glass reservoir in scalding hot water](https://organicaromas.com/wp-content/uploads/2024/01/Maintenance-4.jpg)
Best results by using boiling hot water.
3. Keep the glass reservoir and glass cap in the water for one hour. It is best for the cleaning if the water can be heated up a little periodically.
- This machine uses only pure, natural essential oils. Do not use any oil that contains chemical ingredients, synthetic fragrances, solids or other impurities as they may cause damage to the machine.
- Do not use wet hands to insert or unplug the recharging power cord, this could lead to electric shock.
- Do not damage, puncture, twist, crush or vigorously stretch the recharging power cord. Also, do not expose the cord to high temperature. A damaged power cord may cause a short circuit and lead to electric shock, fire.
- Do not expose the machine and the recharging power cord to excessive or improper electrical voltage. Prior to use consult the specs herein and if necessary request assistance from an electrician.
- Do not disassemble, open, or break the seal of the machine for any reason. This could void the warranty. If there is any problem, please contact the seller for service.
- Do not use in high heat, high humidity, or in and around places with open water to avoid potential electric shock.
- The machine should be placed on a flat surface and not on carpets, rugs, or unstable places.
- Do not allow clothing, cloth or other materials such as curtains to block the machine exhaust port. Poor air circulation may lead to the machine malfunctioning, overheating or catching fire.
- If essential oil or other liquids come into contact with the diffuser body make sure to immediately wipe it clean and dry with a clean cloth/rag to any avoid damage.
- Do not use harsh cleaners like those containing chlorine or acids as these could cause off-gassing or chemical destabilization which could be a health hazard.
- Avoid exposing the diffuser to direct sunlight and do not place near an air conditioner, fan or heater.
- The diffuser should be placed out of reach of children. Children should be taught to not play with the machine. This machine is not suitable for children, the elderly and those who lack knowledge of the products correct usage.
